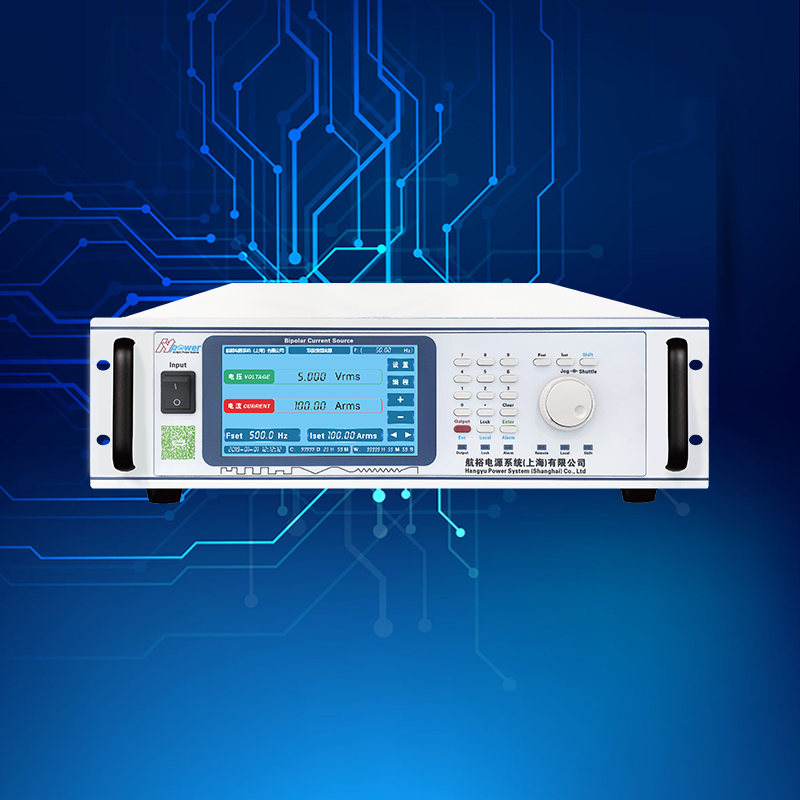

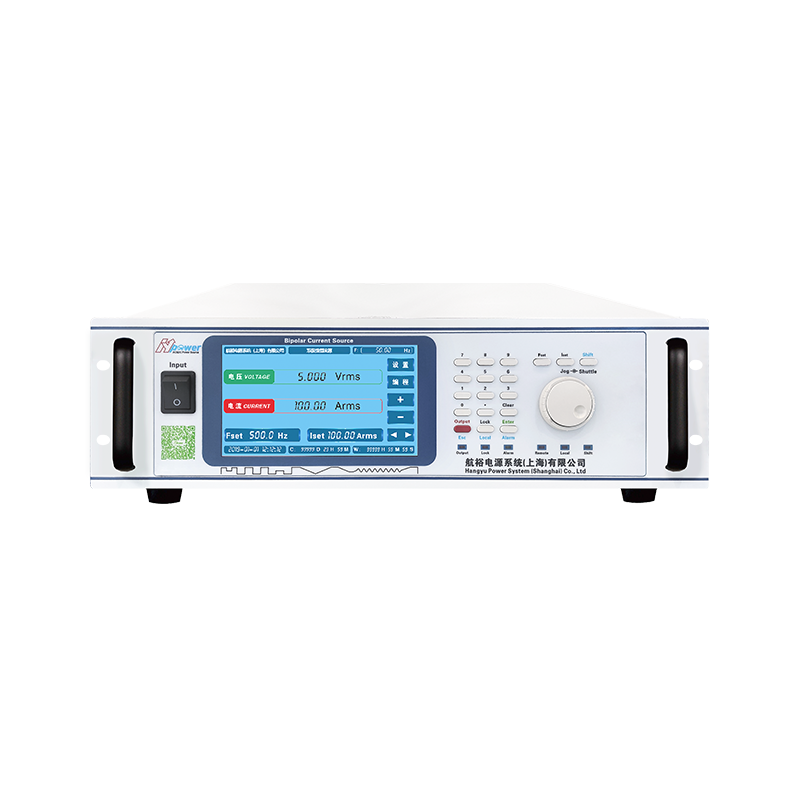

HY-BPCSU-CT Current Sensor Test Power Supply

Product Features

■ Open circuit voltage: ±2.5V~±20V optional

■ Output current: 0~±1000A optional

■ Output power: 125W~20kW

■ Output frequency: DC~100Hz、DC~500Hz、DC~1kHz、DC~5kHz、DC~10kHz、 DC~20kHz、 DC~30kHz、DC~50kHz

■ Output waveform: sinusoidal wave, triangular wave, square wave, steamed bun wave, sawtooth wave optional

■ Using new linear technology, ultra-low ripple, noise, ultra-low distortion rate

■ High response speed, current response time≤100μs

■ 3U single machine size and weight：450(W)*660(D)*133(H)mm,About 30kg

■ For more parameters, please refer to the sample booklet

Application Field

■ Frequency characteristic test

■ Current accuracy calibration test

■ Long-term operation test

■ Rated current and temperature rise test

■ Overload capacity test

■ Apply abnormal current conditions

■ DI/DT test
