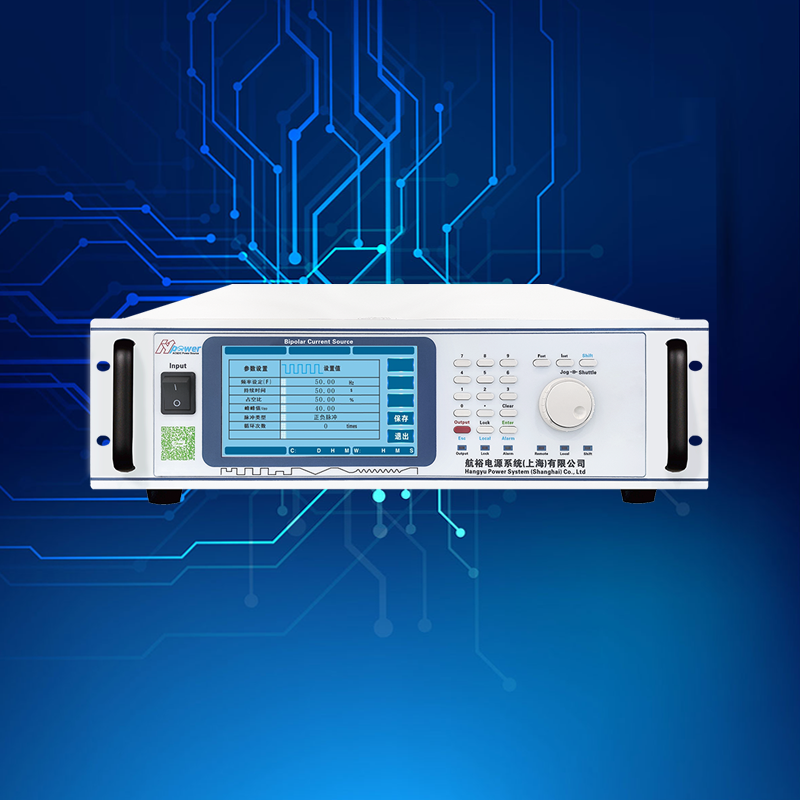

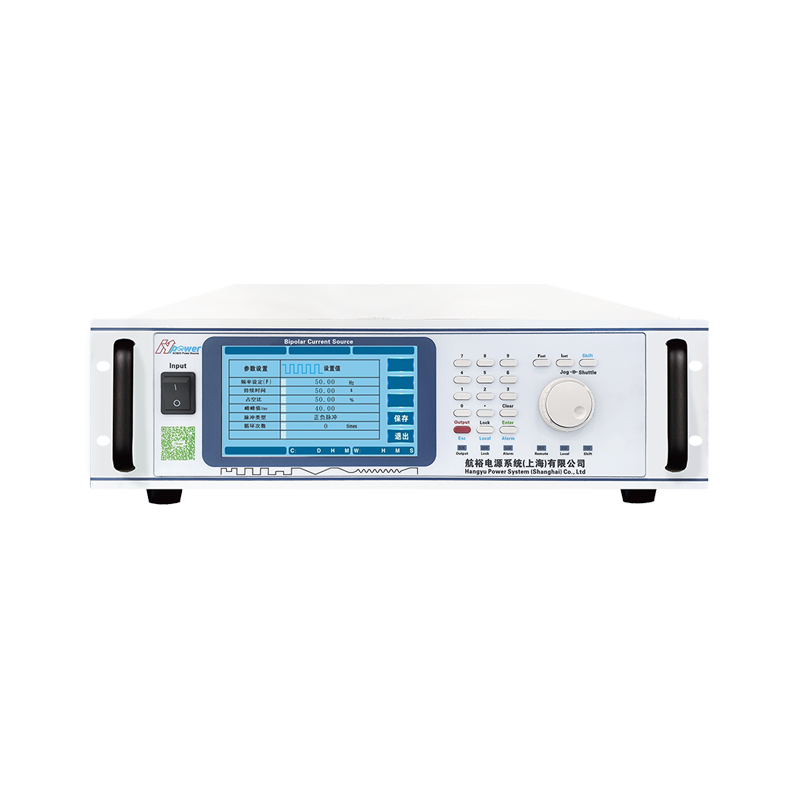

HY-BPCSU-P Bipolar Pulse Constant Current Source

Product Features

■ Open circuit voltage: ±2.5V/±5V/±10V/±20V/±30V/±40V/±60V/±80V (optional)

■ Output current: 0~±1000A（optional）

■ Output power: 125W~20kW

■ Output frequency: DC~100Hz、500Hz、1kHz、5kHz、10kHz、20kHz、30kHz、50kHz   (-3dB) optional

■ Output waveform: sinusoidal wave, triangular wave, square wave, steamed bun wave, sawtooth wave

■ Adopting new linear technology, it features low ripple, low noise and ultra-low distortion rate

■ High response speed, current response time≤100μs

■ 3U single machine size and weight：450(W)*660(D)*133(H)mm,About 30kg

■ For more parameters, please refer to the sample booklet

Application Field

■ MOSFET

■ IGBT

■ New type power devices

■ Other power semiconductors, laser diodes, optocouplers, etc.
