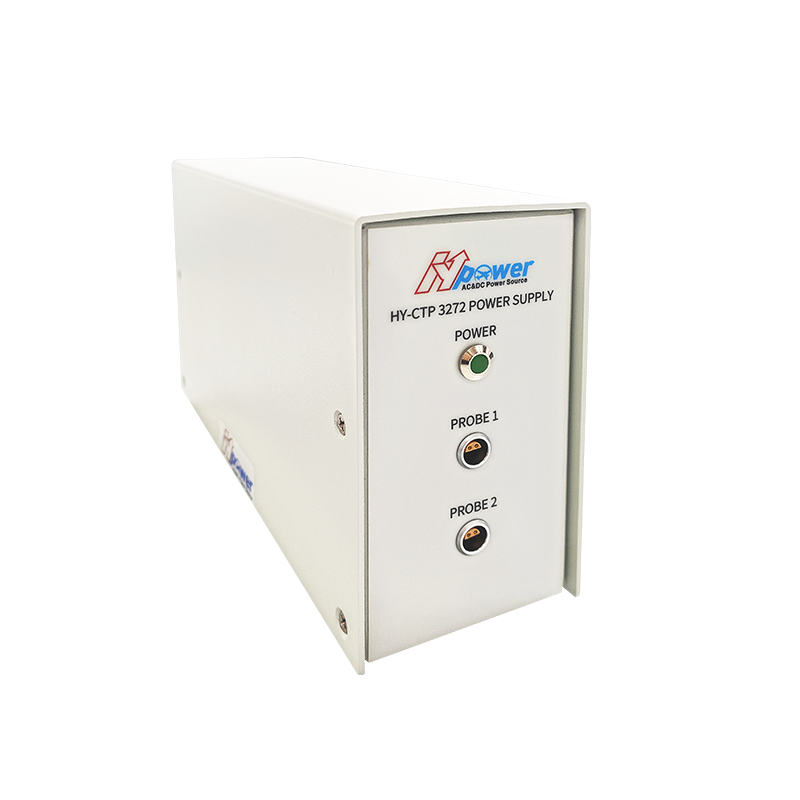

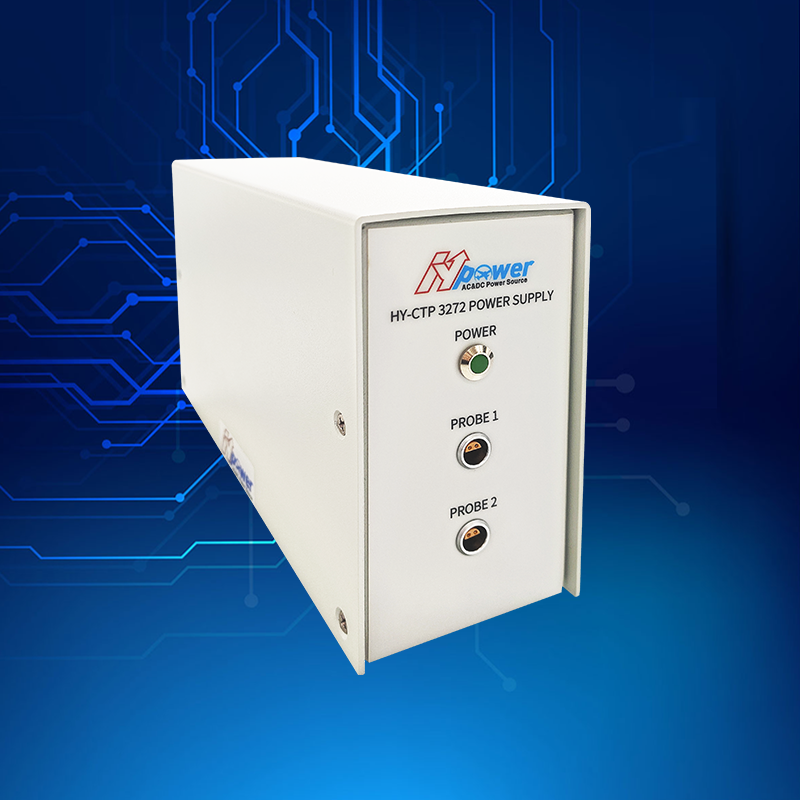

HY-CTPSU 3272 Special Power Supply for Current Sensor

This power supply is a replacement for the HIOKI CT3272 model and is used to power current probes.

Product Features

■ For observing current waveforms

■ Clamp-on current probes can be used when the oscilloscope does not provide power

■ Clamp-on current probes can also be used with the storage recorder series

■ Applicable models: 3273-50, 3274, 3275, 3276 clamp-on current sensors

■ Number of power connections: 3273-50: Up to 2; 3274: Up to 1; 3275: Up to 1; 3276: Up to 1

■ Output: ±12V ±0.5V, 600mA (the sum of all channels)

■ Usage environmen: 0 to 40℃, maximum 80% RH (non-condensing)

■ Power supply: Specify the voltage to be used from 120V, 220V, 240V, with a maximum of 20VA

■ Size: 66(W)*209.6(D)*118.5(H)mm

■ Usage environment: Indoor, altitude ≤ 2000m

Product Advantages

■ The HY-CTPSU series adopts outstanding linear power supply technology, which demonstrates remarkable advantages over switch-mode power supply technology.

■ Lower ripple coefficient: The ripple coefficient of linear power supplies is very low and almost negligible, while that of switch-mode power supplies is relatively high, especially under high-frequency switching operations.

■ Less electromagnetic interference: Linear power supplies generate less electromagnetic interference because their working principle does not involve high-frequency switching operations. In contrast, pure switch-mode power supplies may produce significant electromagnetic interference.

■ High stability and accuracy: Linear power supplies offer extremely high output stability and accuracy, ensuring accurate and reliable testing processes.

■ In addition, linear technology helps extend the lifespan of equipment, optimize user experience, and further enhance signal integrity, highlighting its advanced and practical nature in technology.
